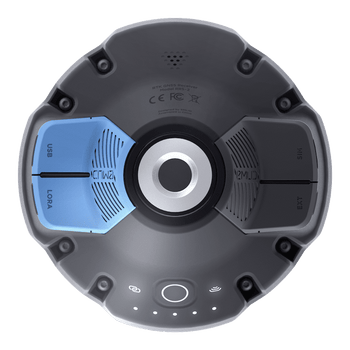

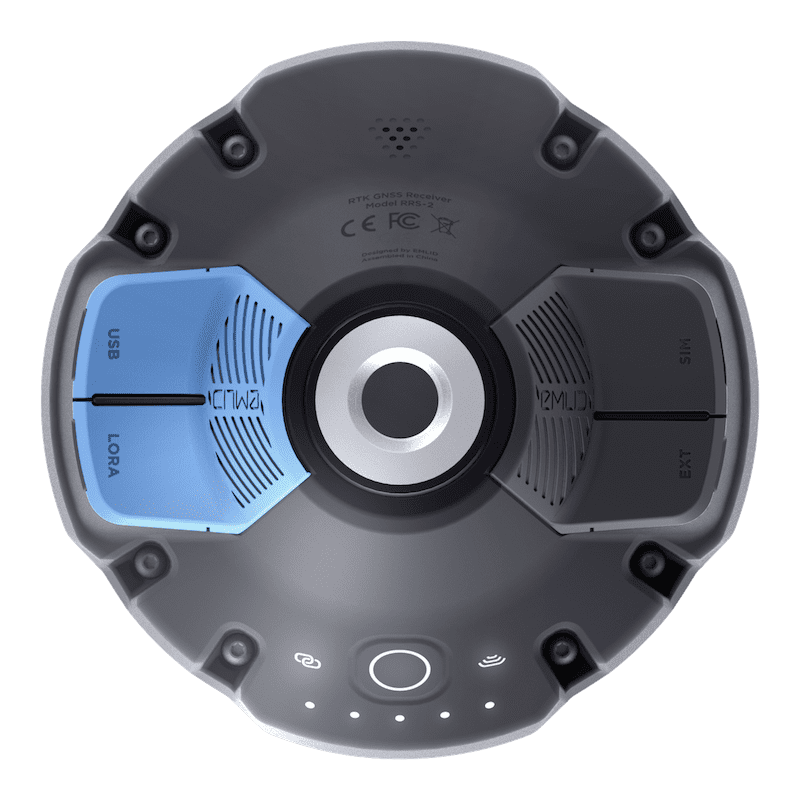

  • Reach RS2+ bottom render
  • Reach RS2+
  • Reach RS2+
  • Reach RS2+
  • Reach RS2+ bottom render
  • Reach RS2+
  • Vorrätig

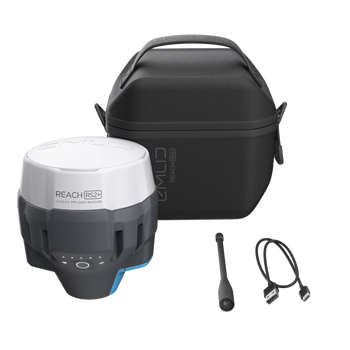

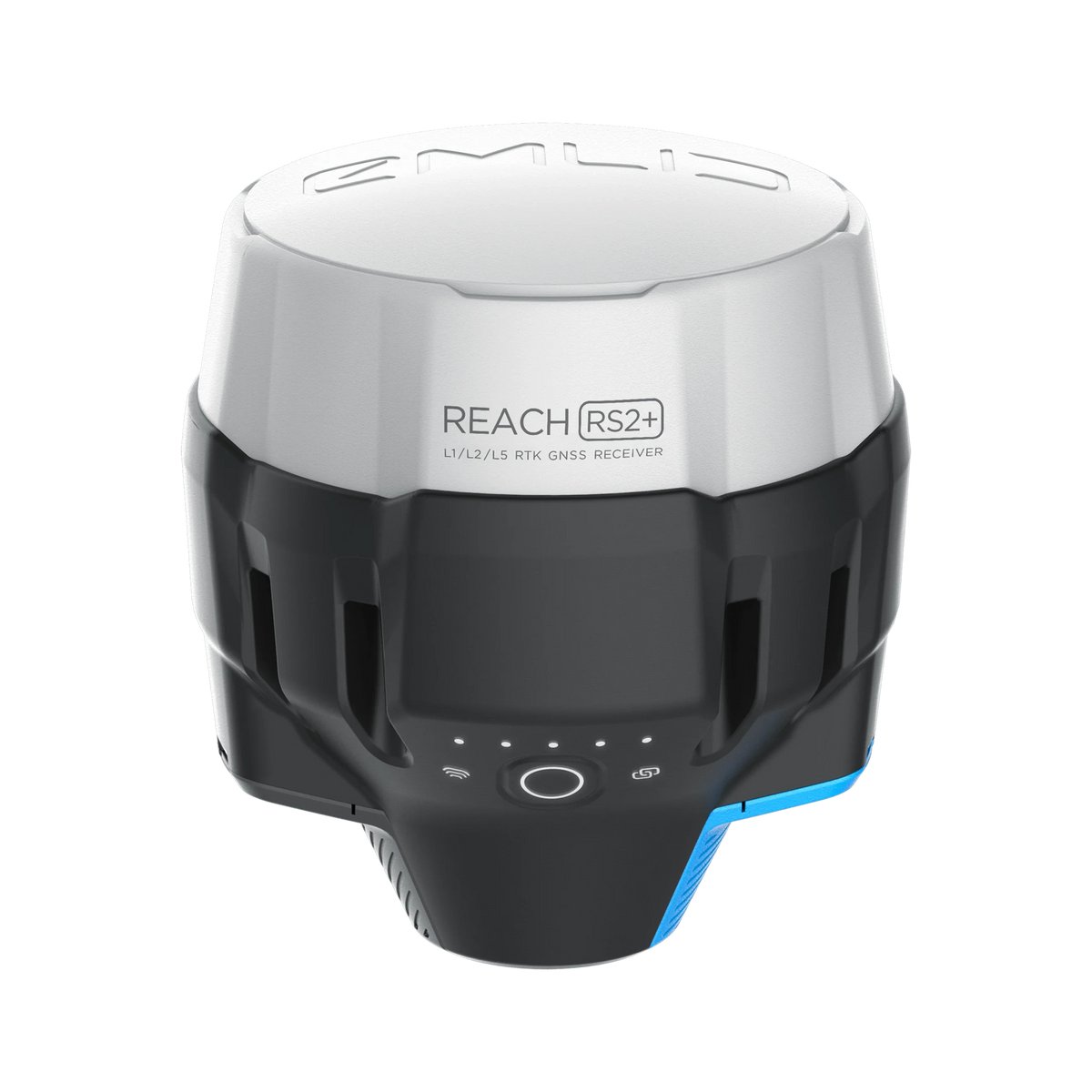

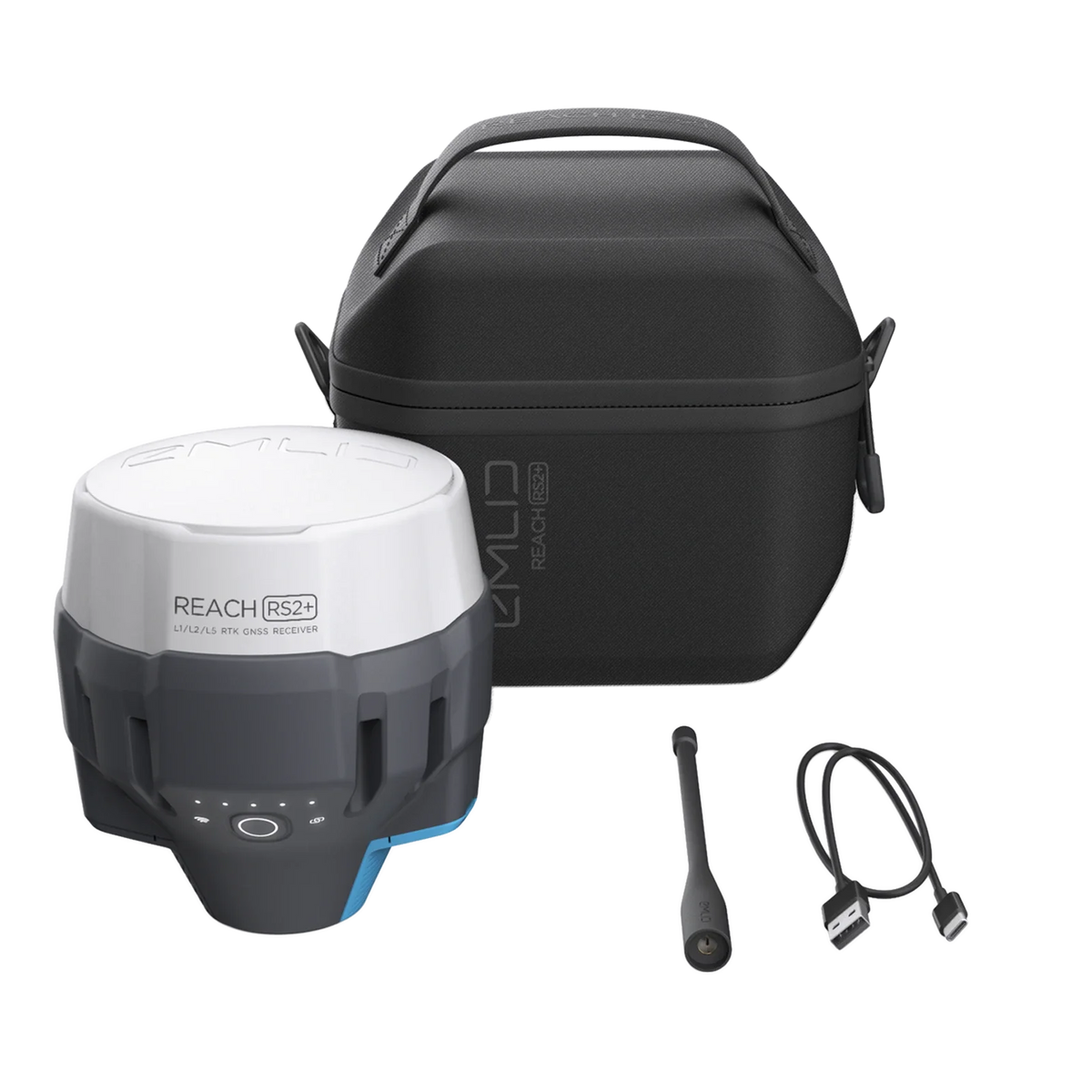

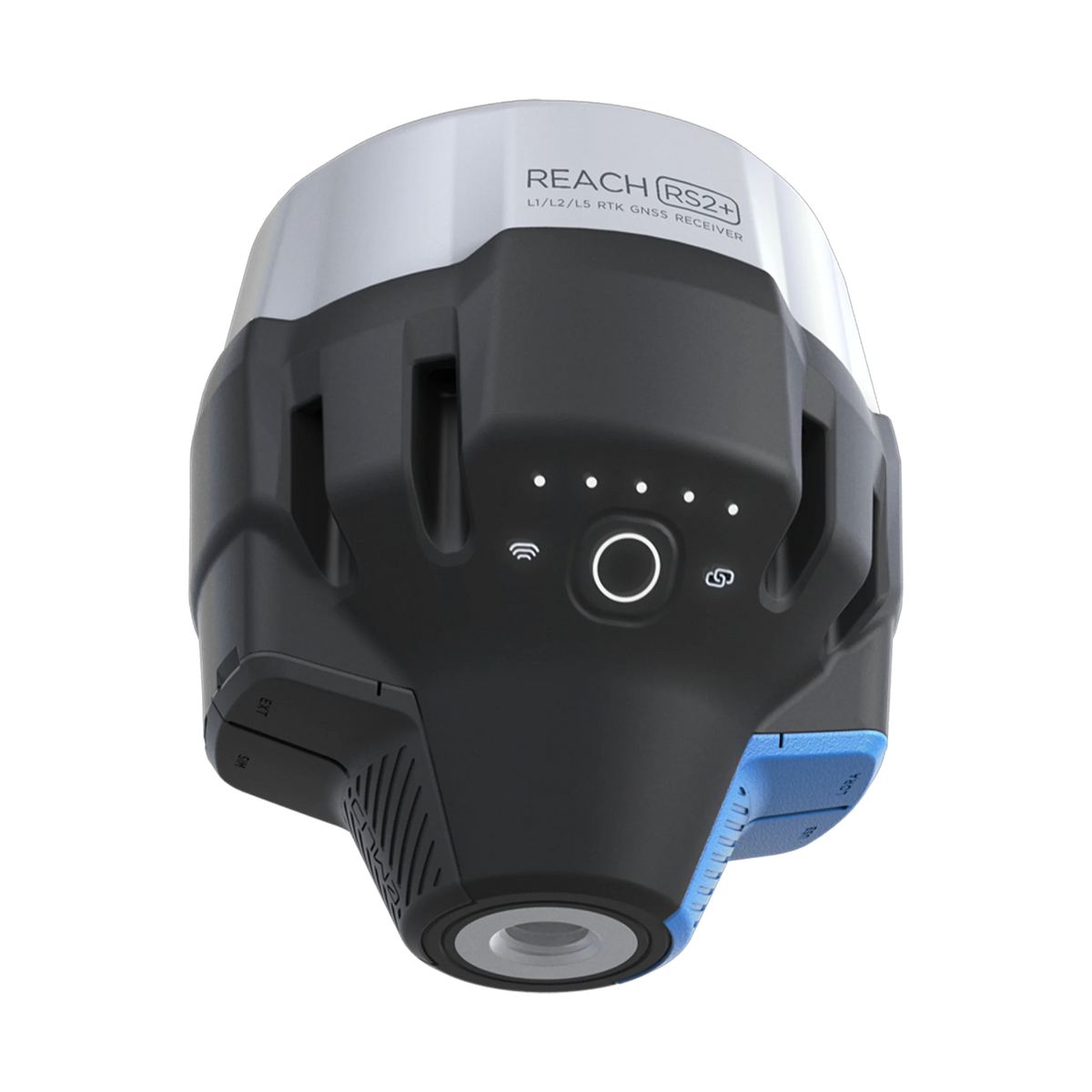

Reach RS2+

€2.199 exkl. MwSt.

Beschreibung

Multiband-RTK-GNSS-Empfänger mit Zentimeterpräzision

Für Vermessung, Kartierung und Navigation. Wird mit einer mobilen App geliefert.

GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b

Funk mit großer Reichweite

LoRa 868/915 MHz, Reichweite bis zu 8

16 Std. als LTE-RTK-Rover

LiFePO4-Akku, 6–40 V Eingang, USB-C-Ladung

WLAN und Bluetooth

Für die Verbindung mit anderen Geräten

Versand

Versand aus den Niederlanden

1–3 Tage mit DHL oder FedEx, bis zu 7 Tage mit der normalen Post

Specifications

{"id":7196946301010,"title":"Reach RS2+","handle":"reach-rs2-plus","description":"\u003ch4\u003eMultiband-RTK-GNSS-Empfänger mit Zentimeterpräzision\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eFür Vermessung, Kartierung und Navigation. Wird mit einer mobilen App geliefert.\u003c\/p\u003e\n\u003ch4\u003eGNSS\u003c\/h4\u003e\n\u003cp\u003eGPS\/QZSS L1C\/A, L2C,\u003cbr\u003eGLONASS L1OF, L2OF,\u003cbr\u003eBeiDou B1I, B2I,\u003cbr\u003eGalileo E1-B\/C, E5b\u003c\/p\u003e\n\u003ch4\u003eFunk mit großer Reichweite\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eLoRa 868\/915 MHz, Reichweite bis zu 8 \u003c\/p\u003e\n\u003ch4\u003e16 Std. als LTE-RTK-Rover\u003c\/h4\u003e\n\u003cp\u003eLiFePO4-Akku, 6–40 V Eingang, USB-C-Ladung \u003c\/p\u003e\n\u003ch4\u003eWLAN und Bluetooth\u003c\/h4\u003e\n\u003cp\u003eFür die Verbindung mit anderen Geräten\u003c\/p\u003e","published_at":"2022-07-26T08:53:20+02:00","created_at":"2023-11-22T16:08:37+01:00","vendor":"UFL NL","type":"","tags":[],"price":219900,"price_min":219900,"price_max":219900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":40619804131410,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"RCH204","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Reach RS2+","public_title":null,"options":["Default Title"],"price":219900,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":"RCH204","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717"],"featured_image":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","options":["Title"],"media":[{"alt":null,"id":23225718866002,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2651,"width":2651,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717"},"aspect_ratio":1.0,"height":2651,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","width":2651},{"alt":null,"id":23225718898770,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2651,"width":2651,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717"},"aspect_ratio":1.0,"height":2651,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717","width":2651},{"alt":"Reach RS2+ bottom render","id":23225718833234,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717","width":800},{"alt":null,"id":23225718931538,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch4\u003eMultiband-RTK-GNSS-Empfänger mit Zentimeterpräzision\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eFür Vermessung, Kartierung und Navigation. Wird mit einer mobilen App geliefert.\u003c\/p\u003e\n\u003ch4\u003eGNSS\u003c\/h4\u003e\n\u003cp\u003eGPS\/QZSS L1C\/A, L2C,\u003cbr\u003eGLONASS L1OF, L2OF,\u003cbr\u003eBeiDou B1I, B2I,\u003cbr\u003eGalileo E1-B\/C, E5b\u003c\/p\u003e\n\u003ch4\u003eFunk mit großer Reichweite\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eLoRa 868\/915 MHz, Reichweite bis zu 8 \u003c\/p\u003e\n\u003ch4\u003e16 Std. als LTE-RTK-Rover\u003c\/h4\u003e\n\u003cp\u003eLiFePO4-Akku, 6–40 V Eingang, USB-C-Ladung \u003c\/p\u003e\n\u003ch4\u003eWLAN und Bluetooth\u003c\/h4\u003e\n\u003cp\u003eFür die Verbindung mit anderen Geräten\u003c\/p\u003e"}
{"id":7196946301010,"title":"Reach RS2+","handle":"reach-rs2-plus","description":"\u003ch4\u003eMultiband-RTK-GNSS-Empfänger mit Zentimeterpräzision\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eFür Vermessung, Kartierung und Navigation. Wird mit einer mobilen App geliefert.\u003c\/p\u003e\n\u003ch4\u003eGNSS\u003c\/h4\u003e\n\u003cp\u003eGPS\/QZSS L1C\/A, L2C,\u003cbr\u003eGLONASS L1OF, L2OF,\u003cbr\u003eBeiDou B1I, B2I,\u003cbr\u003eGalileo E1-B\/C, E5b\u003c\/p\u003e\n\u003ch4\u003eFunk mit großer Reichweite\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eLoRa 868\/915 MHz, Reichweite bis zu 8 \u003c\/p\u003e\n\u003ch4\u003e16 Std. als LTE-RTK-Rover\u003c\/h4\u003e\n\u003cp\u003eLiFePO4-Akku, 6–40 V Eingang, USB-C-Ladung \u003c\/p\u003e\n\u003ch4\u003eWLAN und Bluetooth\u003c\/h4\u003e\n\u003cp\u003eFür die Verbindung mit anderen Geräten\u003c\/p\u003e","published_at":"2022-07-26T08:53:20+02:00","created_at":"2023-11-22T16:08:37+01:00","vendor":"UFL NL","type":"","tags":[],"price":219900,"price_min":219900,"price_max":219900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":40619804131410,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"RCH204","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Reach RS2+","public_title":null,"options":["Default Title"],"price":219900,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":"RCH204","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717","\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717"],"featured_image":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","options":["Title"],"media":[{"alt":null,"id":23225718866002,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2651,"width":2651,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717"},"aspect_ratio":1.0,"height":2651,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/rs2plus.webp?v=1700665717","width":2651},{"alt":null,"id":23225718898770,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2651,"width":2651,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717"},"aspect_ratio":1.0,"height":2651,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/sidestore.webp?v=1700665717","width":2651},{"alt":"Reach RS2+ bottom render","id":23225718833234,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/emlid-reahrs2-bottom-1-1_095cc415-d669-4d56-9177-7ea050ae7816.png?v=1700665717","width":800},{"alt":null,"id":23225718931538,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/eu.store.emlid.com\/cdn\/shop\/products\/Rs2-package-wo-extention_c1b6c49a-0a4d-4831-a87b-1fd0173913af.webp?v=1700665717","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch4\u003eMultiband-RTK-GNSS-Empfänger mit Zentimeterpräzision\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eFür Vermessung, Kartierung und Navigation. Wird mit einer mobilen App geliefert.\u003c\/p\u003e\n\u003ch4\u003eGNSS\u003c\/h4\u003e\n\u003cp\u003eGPS\/QZSS L1C\/A, L2C,\u003cbr\u003eGLONASS L1OF, L2OF,\u003cbr\u003eBeiDou B1I, B2I,\u003cbr\u003eGalileo E1-B\/C, E5b\u003c\/p\u003e\n\u003ch4\u003eFunk mit großer Reichweite\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp\u003eLoRa 868\/915 MHz, Reichweite bis zu 8 \u003c\/p\u003e\n\u003ch4\u003e16 Std. als LTE-RTK-Rover\u003c\/h4\u003e\n\u003cp\u003eLiFePO4-Akku, 6–40 V Eingang, USB-C-Ladung \u003c\/p\u003e\n\u003ch4\u003eWLAN und Bluetooth\u003c\/h4\u003e\n\u003cp\u003eFür die Verbindung mit anderen Geräten\u003c\/p\u003e"}

Spezifikation

  • Mechanik

    Abmessungen: 126 × 126 × 142 mm

    Gewicht: 950 g

    Betriebstemp.º: -20 bis +65 ºC

    Schutzart: IP67

  • Elektrik

    Autonomie: 16 Std. als LTE-RTK-Rover, 22 Std. Aufzeichnung

    Batterie: LiFePO4 6.400 mAh, 6,4 V

    Externe Stromzufuhr: 6–40 V

    Aufladen: USB-C 5 V, 3 A

    Zertifizierung: FCC, CE

  • Positionierung

    Statisch: H: 4 mm + 0,5 ppm | V: 8 mm + 1 ppm

    PPK: H: 5 mm + 0,5 ppm | V: 10 mm + 1 ppm

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Konvergenzzeit: üblicherweise ~5 s

  • Konnektivität

    LoRa-Funk

    Frequenzbereich: 868/915 MHz

    Leistung: 0,1 W

    Entfernung: Bis zu 8 km

    LTE-Modem

    Regionen: Global

    Bänder: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38, 40, 41 UMTS (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19 Quad-Band, 850/1.900, 900/1.800 MHz

    SIM-Karte: Nano-SIM

    WLAN: 802.11 b/g/n

    Bluetooth: 4.0 (BR/EDR + LE)

    Anschlüsse: RS-232, USB-C

  • Daten

    Korrekturen: Ntrip, RTCM3

    Positionsausgabe: NMEA, LLH/XYZ

    Datenprotokollierung: RINEX

    Interner Speicher: 16 GB, 160+ Tage Aufzeichnung bei 1 Hz

  • GNSS

    Erfasstes Signal: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b

    Anzahl der Kanäle: 184

    Aktualisierungsraten: bis zu 10 Hz
